Recently I’m experimenting with performing photographic processing entirely on mobile. The paid version of Adobe Lightroom mobile is decent, but beyond that I found the number of high quality tools (especially ones capable of processing RAW files) to be scarce.

Because of that, I decided to try building some small tools to complement the software I already use. While doing so, I spent time struggling to understand how to correctly build and install an Android application that embeds native Rust code. This post is a short report of that process and the mental model that eventually made it work.

Our goal is to build a shared library named libexample.so, cross-compiled on a Linux desktop for ARM64 architecture. We will have a small Android application that loads libexample.so and exchanges data with it. The application itself will be responsible for interacting with the Android framework, while the heavy computation will be done inside the Rust native library.

To get the Rust compiler ready for this, you’ll need to add that target via rustup

rustup target add aarch64-linux-android

1. Android tools and development environment

Android applications are compiled against a specific SDK version. These SDK levels are represented by integers (for example 34, 35, 36), which correspond to particular Android platform releases. This was written with a Samsung Galaxy A53 target in mind. At the time of writing, this phone is running Android 16 with UI8. In this text we will use SDK 34 (Android 14), which seemed reasonable when I started writing this.

We need to get the SDK, which you can do from pre-compiled binaries provided by Google. In Arch Linux, you can also get it from the following AUR packages

android-sdk-build-tools
android-sdk-platform-tools
android-sdk-cmdline-tools-latest

These AUR packages will write the necessary tools to /opt/android-sdk. Some of them (aapt, aapt2, d8, and others) will have symlinks in /usr/bin as well. On the other hand, sdkmanager, which is the official tool for managing SDK packages from the terminal, is not symlinked by default and must be added to PATH manually by appending

# Android SDK Command Line Tools
export ANDROID_HOME=/opt/android-sdk
export PATH="$PATH:$ANDROID_HOME/cmdline-tools/latest/bin"

to your .bashrc, or something similar.

Once you have the command line tools installed and all paths configured right, you can get the Android NDK using sdkmanager

sdkmanager --list | grep ndk
sdkmanager --install "ndk;27.0.12077973" # For instance

In order for that last command to work in Arch, you will also need to run it as sudo, or perhaps better, to give your user owner permissions over the /opt/android-sdk directory

sudo chown -R $USER:$USER /opt/android-sdk

The Android Debugger Bridge (adb) is the primary command line tool used to communicate with Android devices. It allows you to install applications, read system logs, and interact with a device from the host desktop machine. Make sure you have it working properly. Among many other stuff, adb can be used to probe a device in debug mode connected via USB to the host machine with

adb devices

If the output looks like

List of devices attached
ABCDEFGHIJK	device

then your device is detected and you are good to go.

2. Project configuration

We begin by creating a new cargo project

cargo new example --lib
cd example

Unless otherwise mentioned, all paths in this note will be relative to example/, which will serve as the project root. We are not going to rely on Android Studio nor Gradle, so we are free to organize the project structure as we see fit. Nonetheless, I found it convenient to have a minimal layout for build artifacts, Java sources and the native library. The following directories is what I’ve been using.

mkdir -p build
mkdir -p obj
mkdir -p java/com/example
mkdir -p obj
mkdir -p res
mkdir -p lib/arm64-v8a

At some point, you will need to run

keytool -genkeypair \
 -keystore debug.keystore \
 -alias androiddebugkey \
 -storepass android \
 -keypass android \
 -keyalg RSA \
 -keysize 2048 \
 -validity 10000 \
 -dname "CN=Android Debug,O=Android,C=US"

inside the project root to generate a key used to sign the APK.

I’ve been using the following Cargo.toml in the experiments I made.

[package]
name = "example"
version = "0.1.0"
edition = "2021"

[lib]
crate-type = ["cdylib"]

[dependencies]
android-activity = { version = "0.6", features = ["native-activity"] }
jni = "0.21"
log = "0.4"
android_logger = "0.13"

I recommend reading about android-activity and jni crates. Check out their documentation: https://docs.rs/android-activity/latest/android_activity/, https://docs.rs/jni/latest/jni/.

I also had to add the following content to .cargo/config.toml in order to have linking done correctly

[target.aarch64-linux-android]

linker = "/opt/android-sdk/ndk/27.0.12077973/toolchains/llvm/prebuilt/linux-x86_64/bin/aarch64-linux-android34-clang"

3. Android Activities

When an app starts, the system expects to launch an Activity, which is essentially a UI screen managed by the operating system and typically written in Java or Kotlin. Activities are part of the Android framework provided by the Android Runtime (ART). When the user launches an app, the Android system roughly performs the following sequence

start app -> Create Activity object -> Call onCreate method

This sequence is managed by the Android framework, through system services such as the Activity Manager, which is responsible for starting the application process and invoking the lifecycle methods of the activity. Check https://developer.android.com/guide/components/activities/intro-activities for more information on Activities.

Activities are one of the fundamental building block of an APK. These, with other components an application may use, are declared to the operating system through the AndroidManifest.xml file. We will use the following minimal AndroidManifest.xml file, which I created at project root.

<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.example">
    <uses-sdk
        android:minSdkVersion="26"
        android:targetSdkVersion="34"/>

    <application android:label="Example">
        <activity
            android:name=".MainActivity"
            android:exported="true">
            <intent-filter>
                <action android:name="android.intent.action.MAIN"/>
                <category android:name="android.intent.category.LAUNCHER"/>
            </intent-filter>
        </activity>
    </application>
</manifest>

Android also provides a NativeActivity, which allows the application to start directly from native code. However, in practice I found it easier to interact with other parts of the operating system when using a small amount of Java. By writing a minimal Java activity to bootstrap the application and then calling into native code, it becomes much simpler to access Android framework features and system services than when relying entirely on NativeActivity.

The basic boilerplate code for our MainActivity is the following

package com.example;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;

public class MainActivity extends Activity {
	static {
		System.loadLibrary("example");
	}

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
	}
}

and should be added to java/com/example/MainActivity.java. Notice how our MainActivity does absolutely nothing so far, except loading the libexample.so. Here, we override the OnCreate method, which will serve as the entry point from which we can call functions implemented inside libexample.so.

4. A first example

Communication between Java and native code on Android is performed through the Java Native Interface (JNI). JNI defines a convention that allows Java code to invoke functions implemented in native libraries such as the Rust one we are willing to write. It allows our native code to interact with objects managed by the Java runtime.

In this first example we will expose a simple native function

public native void run();

inside the class com.example.MainActivity. We will add a call to that function inside the overloaded version of onCreate. The full java/com/example/MainActivity.java becomes

package com.example;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;

public class MainActivity extends Activity {
	public native void run();

	static {
		System.loadLibrary("example");
	}

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		Log.i("example", "Calling native function...");
		run();
	}
}

The runtime will look for a symbol in the loaded library with the following name

Java_com_example_MainActivity_run

In general, the pattern used by JNI is Java_<package>_<class>_<method>, where dots in the package name are replaced by underscores. When the activity calls run, the Android runtime searches the loaded shared libraries for a symbol with this name and transfers execution to it if found.

Since Rust normally applies name mangling to its functions, we must explicitly export the symbol using the #[no_mangle] attribute and declare the function with the extern "system" calling convention. This ensures that the compiled library exposes a symbol with the exact name expected by the JNI runtime. The following block is an example implementation of the run function inside the Rust native library (src/lib.rs).

use jni::JNIEnv;
use jni::objects::JObject;
use log::info;

#[no_mangle]
pub extern "system"
fn Java_com_example_MainActivity_run(
	_env: JNIEnv,
	_obj: JOBject
) {
	// Initialize Android logger
	// This allows `info!` macro messages to be visible
	// in `adb logcat`
	android_logger::init_once(
		android_logger::Config::default()
		.with_tag("example")
		.with_max_level("log::LevelFilter::Info")
	);

	loop {
		std::thread::sleep(std::time::Duration::from_secs(1));
		info!("Running...");
	}
}

5. APK generation

The following lines are the complete build process I’m using. It includes compilation of native Rust and java code, APK creation, linking, aligning and signing.

# Compile Rust code
cargo build --target aarch64-linux-android --release

# Copy native library
cp target/aarch64-linux-android/release/libexample.so lib/arm64-v8a

# Compile Java code
javac -classpath /opt/android-sdk/platforms/android-34/android.jar \
  -d obj/ java/com/example/MainActivity.java

# Convert to dex
d8 --lib /opt/android-sdk/platforms/android-34/android.jar \
  obj/com/example/MainActivity.class

# Create base APK (no resources)
aapt2 link \
  -o base.apk \
  -I /opt/android-sdk/platforms/android-34/android.jar \
  --manifest AndroidManifest.xml # build/*.flat

# Add dex
zip -u base.apk classes.dex

# Add native library to APK
zip -u base.apk lib/arm64-v8a/libexample.so

# Align APK
zipalign -f 4 base.apk app-aligned.apk

# Sign APK
apksigner sign \
  --ks debug.keystore \
  --ks-pass pass:android \
  app-aligned.apk

Installing the APK can be done by running

adb install -r app-aligned.apk

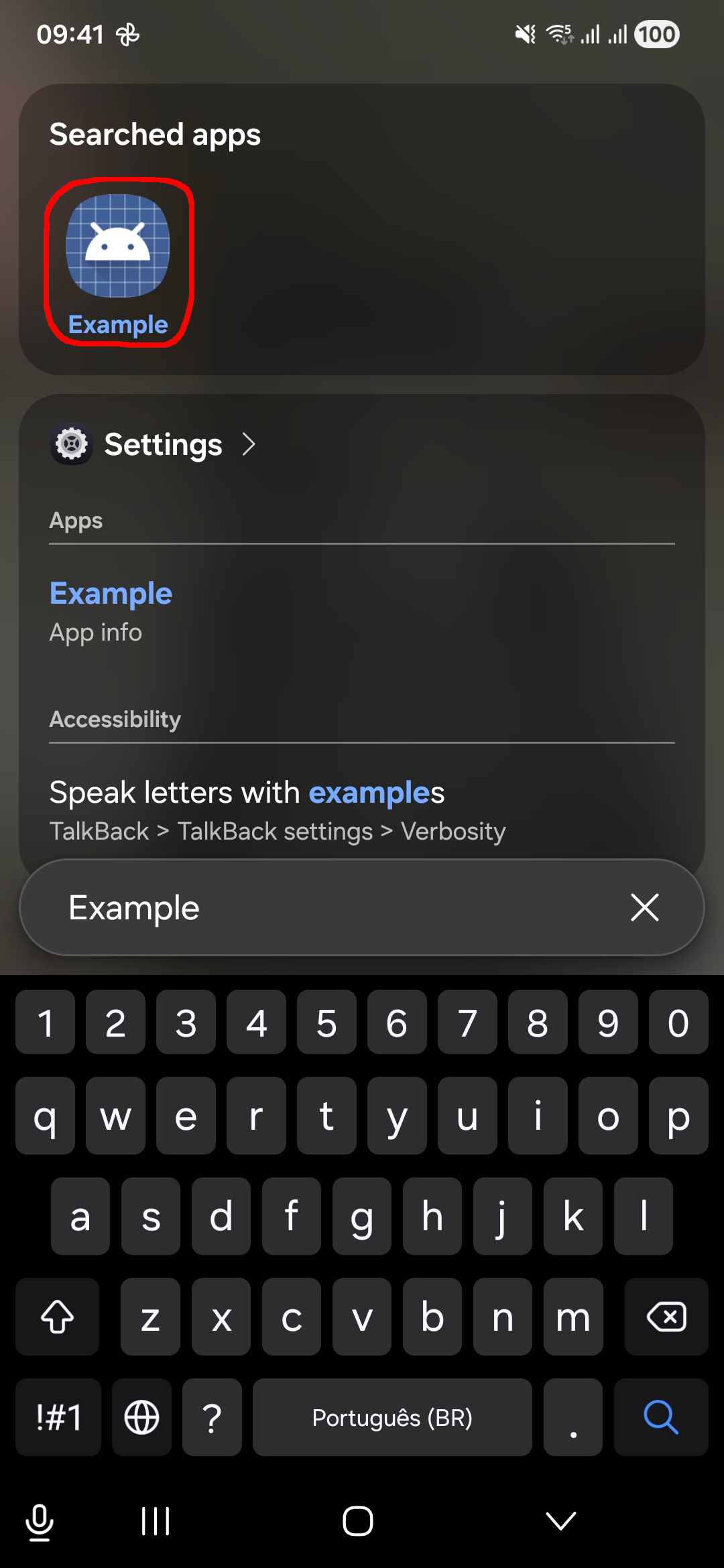

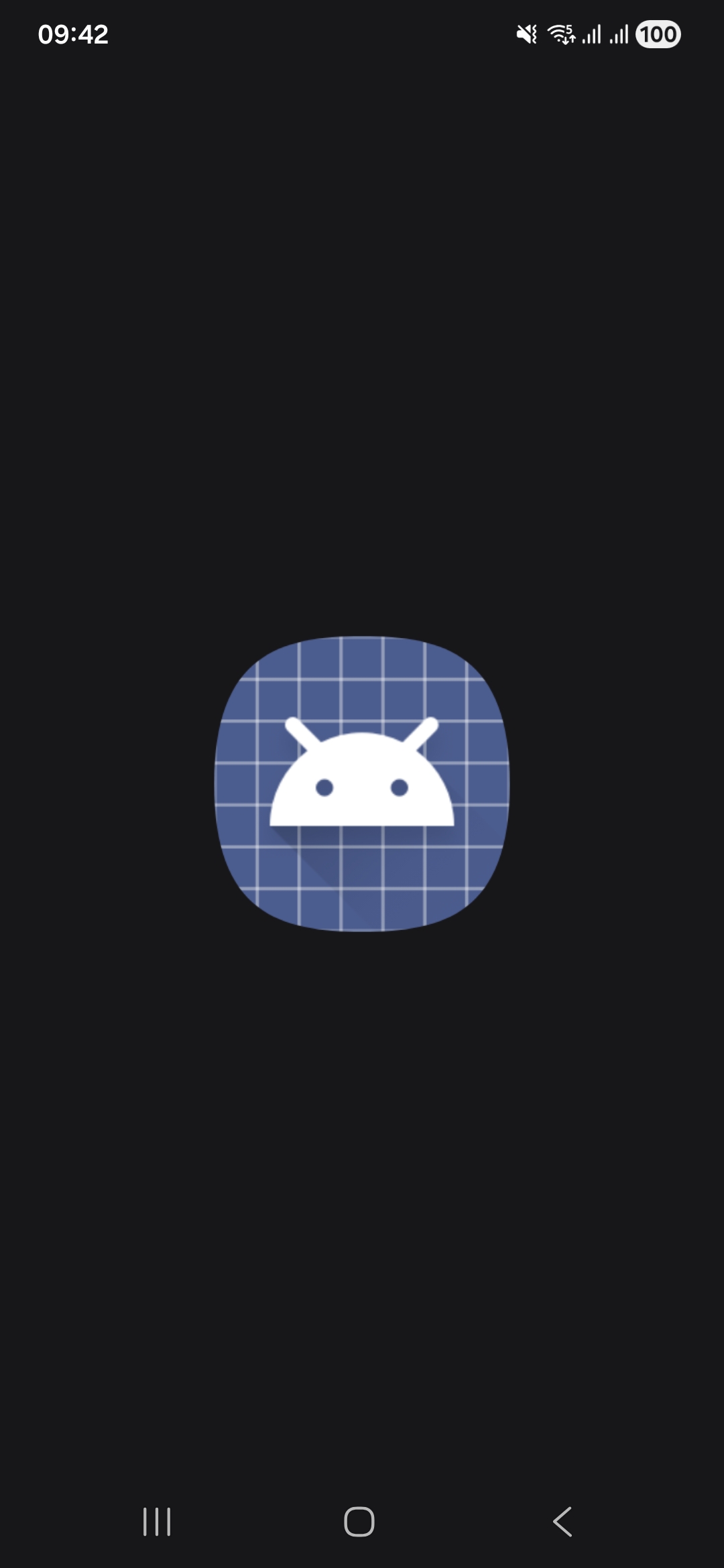

Now write “example” in the search box, you should find a generic icon with that name. If everything went well, the app will open (and stay open, for that matter). You can read the adb logs by running

adb logcat | grep example

and you should find some lines like

Running...
Running...
Running...

there.

6. A second example

In the previous example we verified that we can successively call a function implemented in Rust from our Java Activity. Now we move one step further and make this interaction more useful.

6.1. Java code

Remember my goal is to work with images. A basic workflow I have in mind is

Open image -> process image -> save new image

To achieve that, we will need a new native function that operates on file descriptors

public native void processFile(int inputFd, int outputFd);

However, before calling processFile, we now need the Java side to:

  1. Let the user select a file.
  2. Obtain a file descriptor for that file.
  3. Create an output file.
  4. Pass both file descriptors to the native code.

Android does not expose file paths directly in most cases. Instead, it uses a higher-level abstraction based on URI and Intents. An Intent is a message used to request an action from another component (Possibly from another app). In this case, we use it to ask the system to let the user pick a file. Inside onCreate

Intent intent = new Intent(Intent.ACTION_OPEN_DOCUMENT);
intent.setType("*/*");
startActivityForResult(intent, PICK_FILE);

The first three lines tell the system to “Open a file picker and let the user choose a document”. When the user selects a file, the result is delivered asynchronously to onActivityResult.

After the file is picked, Android returns a Uniform Resource Identifier (URI). An URI is not a file path. It is a reference, managed by the Android system that allows controlled access to the underlying data. To actually read the file, we must ask the system for a raw integer file descriptor using the ContentResolver, which is what we want to pass for the native library.

Uri uri = data.getData();

ParcelFileDescriptor pinput =
    getContentResolver().openFileDescriptor(uri, "r");
int inFd = pinput.detachFd();

We also need a place to write the processed result. Instead of manually handling file paths, we again rely on the system. The following lines create a new entry in the system media store (the gallery), and get a raw integer file descriptor for that URI.

Uri outUri = getContentResolver().insert(
    android.provider.MediaStore.Images.Media.EXTERNAL_CONTENT_URI,
    new android.content.ContentValues()
);

ParcelFileDescriptor poutput =
    getContentResolver().openFileDescriptor(outUri, "w");

int outFd = poutput.detachFd();

And now, with both inFd (input image) and outFd (output image) file descriptors available, we can finally call our Rust function

processFile(inFd, outFd);

At this point, control is transferred to the native library, which is responsible for processing the content of inFd and saving the result to outFd.

In summary, our java/com/example/MainActivity.java should look something like this

package com.example;

import android.app.Activity;
import android.os.Bundle;
import android.net.Uri;
import android.util.Log;
import android.os.ParcelFileDescriptor;
import android.content.Intent;

public class MainActivity extends Activity {
    static final int PICK_FILE = 1;
    static {
        System.loadLibrary("example");
    }
    public native void processFile(int inputFd, int outputFd);

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

		Intent intent = new Intent(Intent.ACTION_OPEN_DOCUMENT);
		intent.setType("*/*");
		startActivityForResult(intent, PICK_FILE);
    }

    @Override
    protected void onActivityResult(int requestCode, int resultCode, Intent data){
        if (requestCode == PICK_FILE && resultCode == RESULT_OK){
		    Uri uri = data.getData();

	    try {
            ParcelFileDescriptor pinput =
	            getContentResolver().openFileDescriptor(uri, "r");
			int inFd = pinput.detachFd();

			Uri outUri = getContentResolver().insert(
			    android.provider.MediaStore.Images.Media.EXTERNAL_CONTENT_URI,
			    new android.content.ContentValues()
			);

			ParcelFileDescriptor poutput =
				getContentResolver().openFileDescriptor(outUri, "w");

			int outFd = poutput.detachFd();

			processFile(inFd, outFd);
	    } catch (Exception e) {
			Log.e("example", "Error", e);
	    }
	}

	// Returns to the previous screen (home in this case)
	finish();
    }
}

6.2. Rust code

For starters, add image = 0.25 as a dependence in Cargo.toml. It provides some basic image encoding and decoding utilities. We can now extend our native library with an implementation of the processFile function, which will be exposed to the Android runtime as the Java_com_example_MainActivity_processFile symbol, following the same JNI naming convention we used earlier for the run function.

use jni::JNIEnv;
use jni::objects::JObject;
use log::info;
use std::fs::File;
use std::os::unix::io::FromRawFd;
use image::{ImageReader, ImageFormat};
use image::DynamicImage;

#[no_mangle]
pub extern "system"
fn Java_com_example_MainActivity_processFile(
    _env: JNIEnv,
    _obj: JObject,
    input_fd: i32,
    output_fd: i32,
) {
	// Convert file descriptors into Rust objects
	// This requires unsafe because Rust assumes ownership
	// of the file descriptor. The descriptor will be closed
	// when File is dropped.
    let input = unsafe { File::from_raw_fd(input_fd) };
    let mut output = unsafe { File::from_raw_fd(output_fd) };

    // Decode image as a DynamicImage type
    let img = ImageReader::new(std::io::BufReader::new(input))
        .with_guessed_format()
        .unwrap()
        .decode()
        .unwrap();

    // Convert to RGBA buffer
    let mut img = img.to_rgba8();

    // Invert colors of each pixel
    for pixel in img.pixels_mut() {
        pixel[0] = 255 - pixel[0]; // R
        pixel[1] = 255 - pixel[1]; // G
        pixel[2] = 255 - pixel[2]; // B
    }

    // Write result
    let outimg = DynamicImage::ImageRgba8(img);
    outimg.write_to(&mut output, ImageFormat::Png).unwrap();
}

When the app runs, the selected image (a JPEG or a PNG, for instance) is passed to this function, processed (which is a dummy color inversion) and written back as a new file. Below I show an example.
